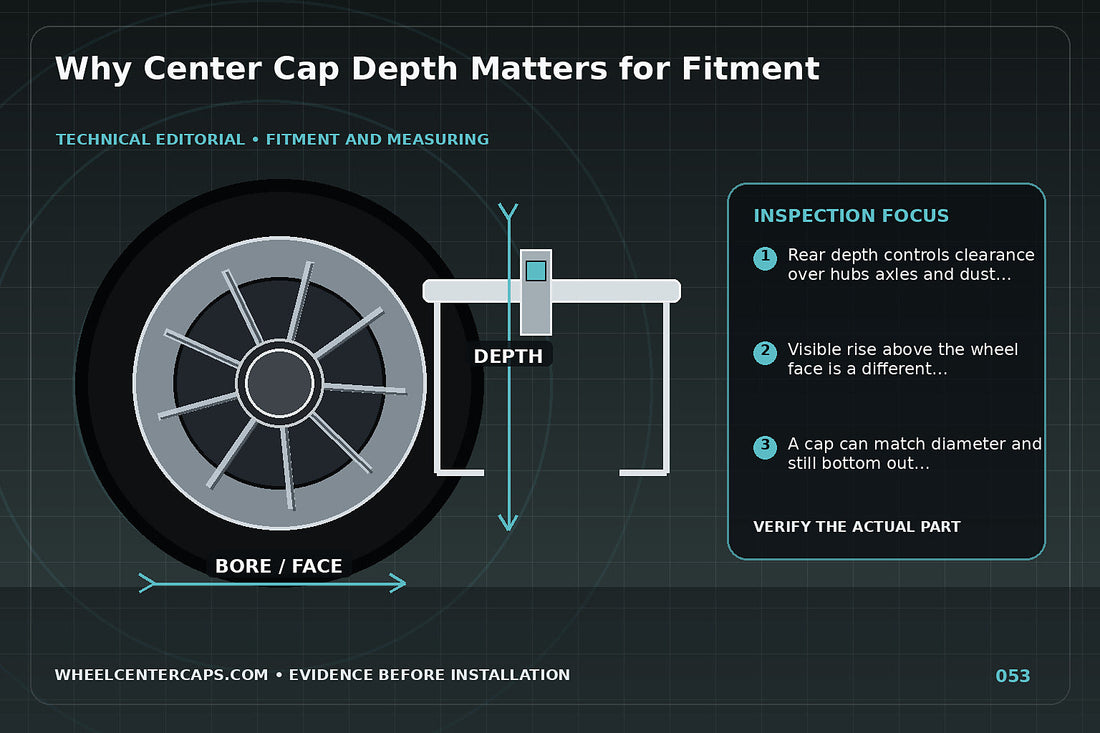

Why Center Cap Depth Matters for Fitment
This article tackles a practical buying or repair question: Why Center Cap Depth Matters for Fitment Check hub axle and dust-cap clearance
The short answer begins here: Rear depth controls clearance over hubs axles and dust caps. The remaining checks show how to confirm that point without inventing dimensions, torque values, materials or cross-brand compatibility.
The three facts that control this decision
| Check 1 | Rear depth controls clearance over hubs axles and dust caps |
|---|---|
| Check 2 | Visible rise above the wheel face is a different measurement |
| Check 3 | A cap can match diameter and still bottom out before seating |
Why this question causes wrong orders
Measurements are useful only when both sides use the same reference points. A face diameter, wheel opening and clip-span measurement can all be different values for the same cap.
Center-cap fitment is a stack of dimensions: visible face, rear skirt, retention diameter, depth, hub clearance and mounting geometry. One matching number cannot overrule a conflict elsewhere.
For center cap depth measurement, separate identity, mechanical fit and package contents. A familiar logo can identify a family while a different suffix, depth or attachment design identifies another part.
Work through the technical checks
Rear depth controls clearance over hubs axles and
Rear depth controls clearance over hubs axles and dust caps. Apply that rule to center cap depth measurement by comparing the physical working surfaces, not only the decorative face. The practical goal is to replace guesswork with evidence that can be compared.
Check the receiving wheel as carefully as the loose component. Coating buildup, damaged threads, a worn lip or a protruding hub can make a correct replacement behave like the wrong one.
Visible rise above the wheel face is a
Visible rise above the wheel face is a different measurement. Apply that rule to center cap depth measurement by comparing the physical working surfaces, not only the decorative face. That distinction matters because appearance is only one layer of the decision.
Use an intact original as the reference whenever possible. A worn component can reveal the application number, but wear and distortion should not be copied as if they were the intended dimensions.
A cap can match diameter and still bottom
A cap can match diameter and still bottom out before seating. Apply that rule to center cap depth measurement by comparing the physical working surfaces, not only the decorative face. A careful check is faster than installing the wrong component and starting over.
Do not borrow an unstated specification from a similar marketplace listing. Shared photographs and shortened titles can conceal a different suffix, quantity or rear architecture.
A step-by-step routine for center cap depth measurement
- Step 1. Record the wheel brand, model or casting information and photograph the complete wheel before focusing on the center opening.
- Step 2. Photograph the cap face, profile and rear or, if it is missing, the wheel opening and hub projection.
- Step 3. Label every measurement by feature: face, rear skirt, clip span, wheel bore, depth or hole spacing.
- Step 4. Compare the complete part number and rear geometry with the current listing before using vehicle information as a supporting clue.
- Step 5. Test the verified part without force and stop if it rocks, bottoms out or leaves retention points misaligned.
Measure the working interface
Label every measurement with its start and end points. Capture a straight-on photo of the tool in place, and keep part numbers, wheel markings and front-and-rear photographs with the dimensions.
Keep the measuring tool in the same plane as the feature. A ruler held above a curved face can exaggerate size, and an edge-to-edge measurement cannot be compared with a center-to-center specification. Name the dimension in the photograph.
Common mistakes to avoid
- Calling every diameter the cap size
- Buying from vehicle year and model alone
- Ignoring depth and hub projection
- Copying an unlabeled measurement from another listing
Each mistake shortcuts one of the three anchors in the table. The second anchor is worth repeating: Visible rise above the wheel face is a different measurement. Return to the original part and compare that feature directly instead of compensating during installation.
Repair, replace or ask for confirmation?
A repair makes sense only when the original center-cap fitment dimension remains structurally sound and the proposed work preserves its designed fit. Replace it when cracking, severe wear, corrosion, distortion or missing retention features make reliable service doubtful.
Ask for confirmation when the decision depends on a detail the live listing does not show. WheelCenterCaps.com can compare clearer evidence, but no seller should approve center cap depth measurement from a vehicle badge or a front-only photograph.
Field notes for center cap depth measurement
Do not destroy the evidence during diagnosis. Keep the original component, its hardware and any packaging until the replacement has been compared and test-fitted. Cutting, drilling, aggressive polishing or permanent adhesive can erase identifying details and eliminate the option to return an incorrect part.
Separate mechanical acceptance from cosmetic acceptance. First decide whether the component attaches correctly, clears the hub and remains secure. Only then judge whether its sheen, age and decorative details match the other wheels. Mixing those decisions is how a visually attractive wrong part gets forced into place.
Treat the live product page as the final offer. Search-engine snippets and saved marketplace pages can shorten titles, omit quantity or preserve old photographs. Reopen the WheelCenterCaps.com page before checkout and confirm the exact item type, finish, quantity and any included pieces stated there.
Frequently asked questions
What is the first thing to check for center cap depth measurement?
Start with this rule: Rear depth controls clearance over hubs axles and dust caps. Then compare the complete identifier and the working geometry before appearance or vehicle information.
Should old hardware be discarded immediately?
Keep it labeled until the replacement is verified. Even worn hardware can document length, head style, washers, spacers and the tool originally used.
Why should suffixes stay attached to the part number?
Suffixes can distinguish finish, revision, depth or package details. Their exact meaning varies, so preserve the full code and compare it with the current listing.
What if the original component is missing?
Photograph the bare wheel center, hub projection and every clip groove or screw point. Add visible wheel markings and labeled bore and depth measurements.
Can a tire shop identify the part from the vehicle?
A shop can gather useful evidence, but vehicle information alone cannot identify an aftermarket wheel component. Wheel markings and the original part remain stronger clues.
Shop the relevant parts and get help
- Search wheel center cap replacement products
- Use the complete center-cap measuring guide
- Ask WheelCenterCaps.com for fitment help
Final rule: A cap can match diameter and still bottom out before seating. Confirm the evidence on the current product page before checkout.
