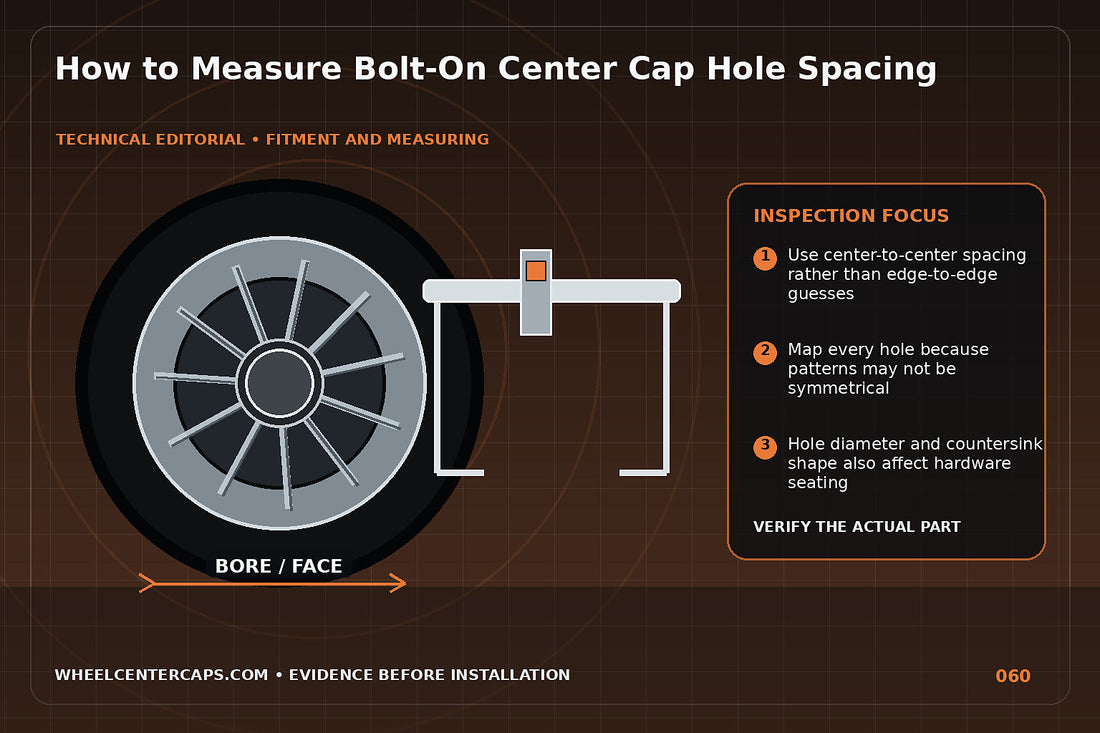

How to Measure Bolt-On Center Cap Hole Spacing
This article tackles a practical buying or repair question: How to Measure Bolt-On Center Cap Hole Spacing Measure center-to-center hardware spacing accurately
The short answer begins here: Use center-to-center spacing rather than edge-to-edge guesses. The remaining checks show how to confirm that point without inventing dimensions, torque values, materials or cross-brand compatibility.
The three facts that control this decision
| Check 1 | Use center-to-center spacing rather than edge-to-edge guesses |
|---|---|
| Check 2 | Map every hole because patterns may not be symmetrical |
| Check 3 | Hole diameter and countersink shape also affect hardware seating |
Why this question causes wrong orders
Center-cap fitment is a stack of dimensions: visible face, rear skirt, retention diameter, depth, hub clearance and mounting geometry. One matching number cannot overrule a conflict elsewhere.
Measurements are useful only when both sides use the same reference points. A face diameter, wheel opening and clip-span measurement can all be different values for the same cap.
For bolt on center cap hole spacing, separate identity, mechanical fit and package contents. A familiar logo can identify a family while a different suffix, depth or attachment design identifies another part.
Work through the technical checks
Use center-to-center spacing rather than edge-to-edge guesses
Use center-to-center spacing rather than edge-to-edge guesses. Apply that rule to bolt on center cap hole spacing by comparing the physical working surfaces, not only the decorative face. That distinction matters because appearance is only one layer of the decision.
Use an intact original as the reference whenever possible. A worn component can reveal the application number, but wear and distortion should not be copied as if they were the intended dimensions.
Map every hole because patterns may not be
Map every hole because patterns may not be symmetrical. Apply that rule to bolt on center cap hole spacing by comparing the physical working surfaces, not only the decorative face. The practical goal is to replace guesswork with evidence that can be compared.
Write the observation in plain language beside the photograph. A note such as rear skirt diameter or six evenly spaced clips is more useful than an isolated number with no named feature.
Hole diameter and countersink shape also affect hardware
Hole diameter and countersink shape also affect hardware seating. Apply that rule to bolt on center cap hole spacing by comparing the physical working surfaces, not only the decorative face. A careful check is faster than installing the wrong component and starting over.
Keep identity and installation separate. First prove that the component belongs to the same family; only then evaluate whether its working dimensions and attachment design agree.
A step-by-step routine for bolt on center cap hole spacing
- Step 1. Record the wheel brand, model or casting information and photograph the complete wheel before focusing on the center opening.
- Step 2. Photograph the cap face, profile and rear or, if it is missing, the wheel opening and hub projection.
- Step 3. Label every measurement by feature: face, rear skirt, clip span, wheel bore, depth or hole spacing.
- Step 4. Compare the complete part number and rear geometry with the current listing before using vehicle information as a supporting clue.
- Step 5. Test the verified part without force and stop if it rocks, bottoms out or leaves retention points misaligned.
Measure the working interface
Label every measurement with its start and end points. Capture a straight-on photo of the tool in place, and keep part numbers, wheel markings and front-and-rear photographs with the dimensions.
Keep the measuring tool in the same plane as the feature. A ruler held above a curved face can exaggerate size, and an edge-to-edge measurement cannot be compared with a center-to-center specification. Name the dimension in the photograph.
Common mistakes to avoid
- Calling every diameter the cap size
- Buying from vehicle year and model alone
- Ignoring depth and hub projection
- Copying an unlabeled measurement from another listing
Each mistake shortcuts one of the three anchors in the table. The second anchor is worth repeating: Map every hole because patterns may not be symmetrical. Return to the original part and compare that feature directly instead of compensating during installation.
Repair, replace or ask for confirmation?
A repair makes sense only when the original center-cap fitment dimension remains structurally sound and the proposed work preserves its designed fit. Replace it when cracking, severe wear, corrosion, distortion or missing retention features make reliable service doubtful.
Ask for confirmation when the decision depends on a detail the live listing does not show. WheelCenterCaps.com can compare clearer evidence, but no seller should approve bolt on center cap hole spacing from a vehicle badge or a front-only photograph.
Field notes for bolt on center cap hole spacing
Treat the live product page as the final offer. Search-engine snippets and saved marketplace pages can shorten titles, omit quantity or preserve old photographs. Reopen the WheelCenterCaps.com page before checkout and confirm the exact item type, finish, quantity and any included pieces stated there.
Separate mechanical acceptance from cosmetic acceptance. First decide whether the component attaches correctly, clears the hub and remains secure. Only then judge whether its sheen, age and decorative details match the other wheels. Mixing those decisions is how a visually attractive wrong part gets forced into place.
Do not destroy the evidence during diagnosis. Keep the original component, its hardware and any packaging until the replacement has been compared and test-fitted. Cutting, drilling, aggressive polishing or permanent adhesive can erase identifying details and eliminate the option to return an incorrect part.
Frequently asked questions
What is the first thing to check for bolt on center cap hole spacing?
Start with this rule: Use center-to-center spacing rather than edge-to-edge guesses. Then compare the complete identifier and the working geometry before appearance or vehicle information.
Should old hardware be discarded immediately?
Keep it labeled until the replacement is verified. Even worn hardware can document length, head style, washers, spacers and the tool originally used.
Is one measurement enough?
Rarely. Name the measured feature and combine it with the complete identifier, profile, rear design and receiving-wheel dimensions that actually control the installation.
Can a tire shop identify the part from the vehicle?
A shop can gather useful evidence, but vehicle information alone cannot identify an aftermarket wheel component. Wheel markings and the original part remain stronger clues.
Why should suffixes stay attached to the part number?
Suffixes can distinguish finish, revision, depth or package details. Their exact meaning varies, so preserve the full code and compare it with the current listing.
Shop the relevant parts and get help
- Search wheel center cap replacement products
- Use the complete center-cap measuring guide
- Ask WheelCenterCaps.com for fitment help
Final rule: Hole diameter and countersink shape also affect hardware seating. Confirm the evidence on the current product page before checkout.
